AL-Mini — Home Elevator Machine
For Rope and Belt Elevator. Whisper-Quiet. Compact. Green.
300 kg MaxNo NoiseGreen HomeMade in India
AL
AL-Mini
Big Comfort.
Smallest Machine.

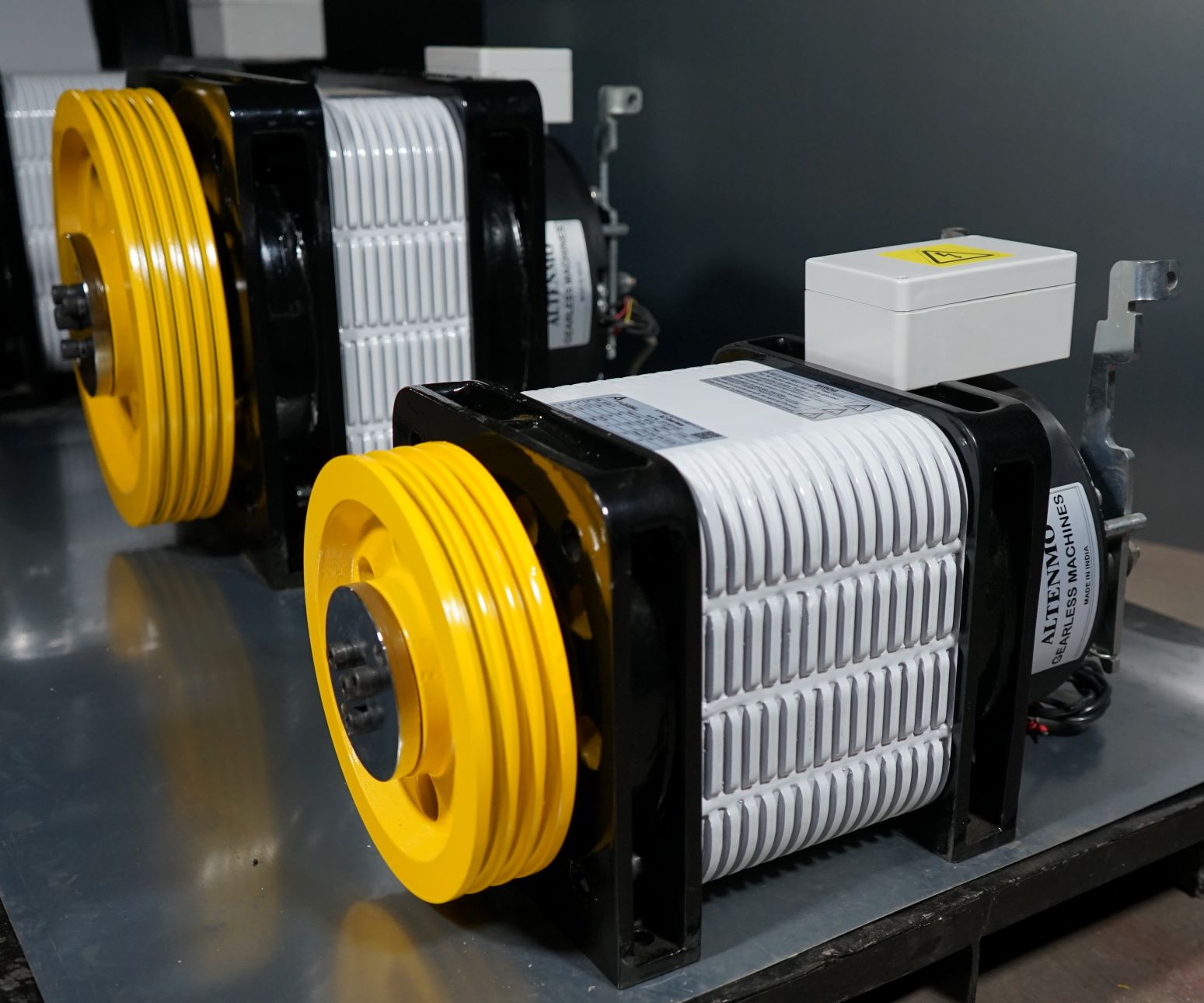

The AL-Mini is Altenmo's smallest gearless machine — purpose-built for home elevator applications. A complete package solution of motor and inverter supporting both rope and belt drive. Designed for GREEN HOME living with ultra-low energy consumption.
01
GREEN HOME with low energy consumption
02
Big comfort at home with Altenmo's smallest machine
03
No Noise and No Vibration
04
Can be used for polyurethane-coated ropes/belts
05
Load up to 300 kg · Roping: 2:1 · Rise: ≤ 15 m
AL-Mini
Technical Specifications
| Machine | Load (kg) | Passengers | Speed (m/s) | Sheave Ø (mm) | Rope | RPM | Torque (Nm) | Power (kW) | Static Load (kg) |
|---|---|---|---|---|---|---|---|---|---|
| AL-Mini | 300 | 4 | 0.3 | 100 | 4×4 | 115 | 65 | 0.8 | 1000 |
| AL-Mini | 300 | 4 | 0.4 | 200 | 6×4 | 76 | 110 | 0.9 | 1000 |
